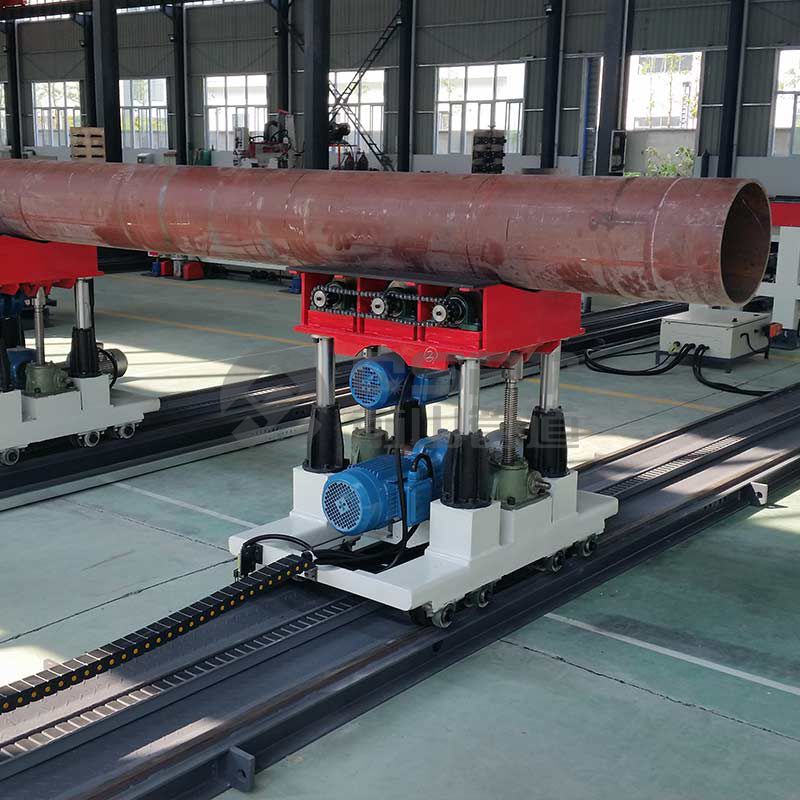

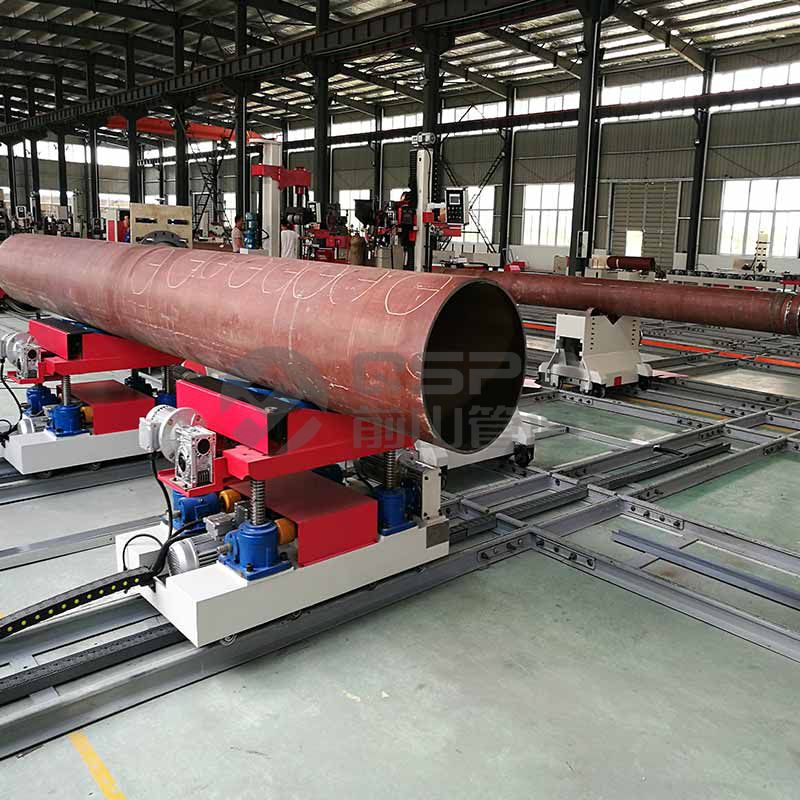

Pipe Lateral trolleyConveying System (Double-screw Type)

Model: PLTCS-16Bb/24Bb/32Bb/40Bb

Pipe Diameter Applicable: DN400/DN600/DN800/DN1000



Performance Features: Patented product; achieving lateral conveying quickly, smoothly and securely;securelyreplacethe entire load and unload type turnover mechanism, two or three conveying trolleys composed with double screws and four guiding rods, two or three 18# light rails; longitudinal movingand horizontal travel by motor; VF stepless speed adjustment, manual control on console (wireless remote control for option).

Patented technology

Smooth operations without impacts

Weight bearing≥10T

Multiple working stations

Horizontal conveying, adjustments
