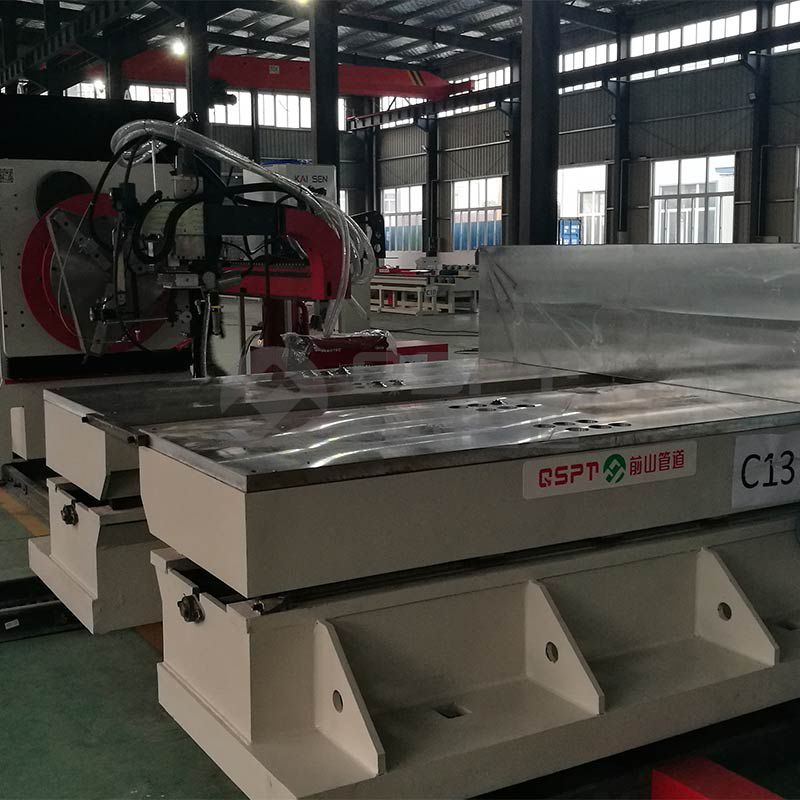

Pipe Fabrication Fitting-up & Welding Centre(Fit-up+ Chuck)

Model: PFFWC-16Ca/24Ca/32Ca

Pipe Diameter Applicable: DN400/DN600/DN800



Performance features: Suitable for fittingup & welding short spool pieces such as “fitting + pipe + fitting”; welding efficiency increased by more than 100%; one fixed type welding positioner with chuck; one telescopic boom for welding; one multi-functional fit-up head; one 15# machined rail;After finishing fitting up weld joint with fit-up machine and positioner , moving away the fit-up machine to start welding automatically; standard configuration: Lincoln Flextech650 multi-function welding power; TIG/MIG root welding with QSPT’s root welding technology; TIG/MIG/SAW fill-in and cap welding; operated with an aluminum alloy wire control box.

Short spool fit up welding master

General worker = pipe fitter + welder
